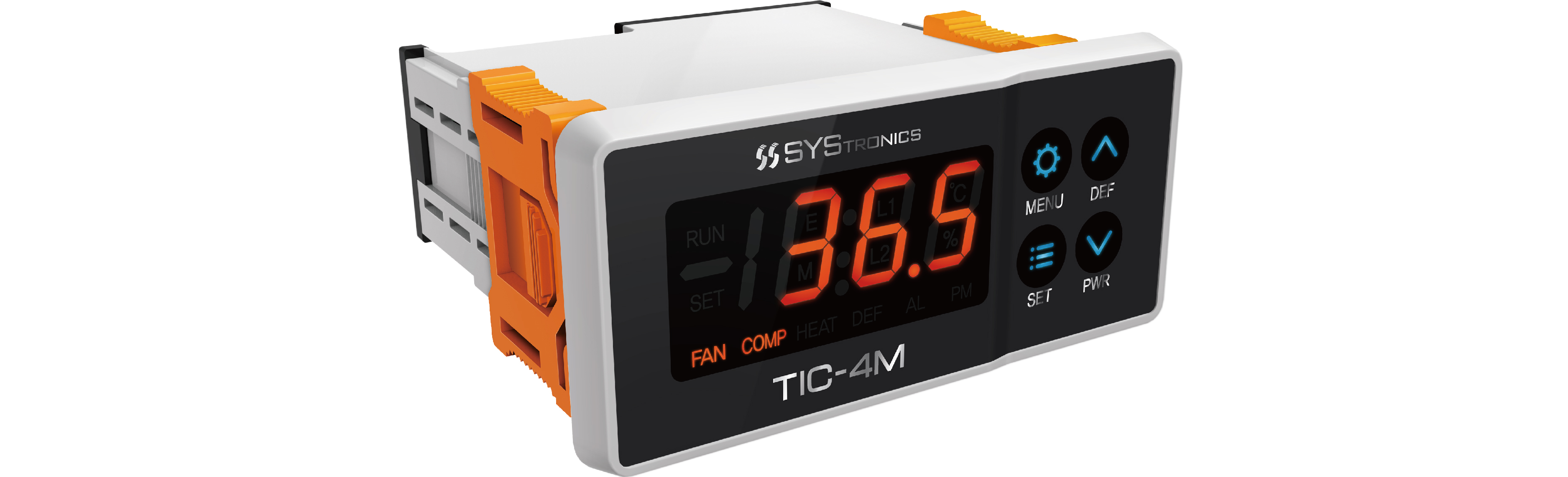

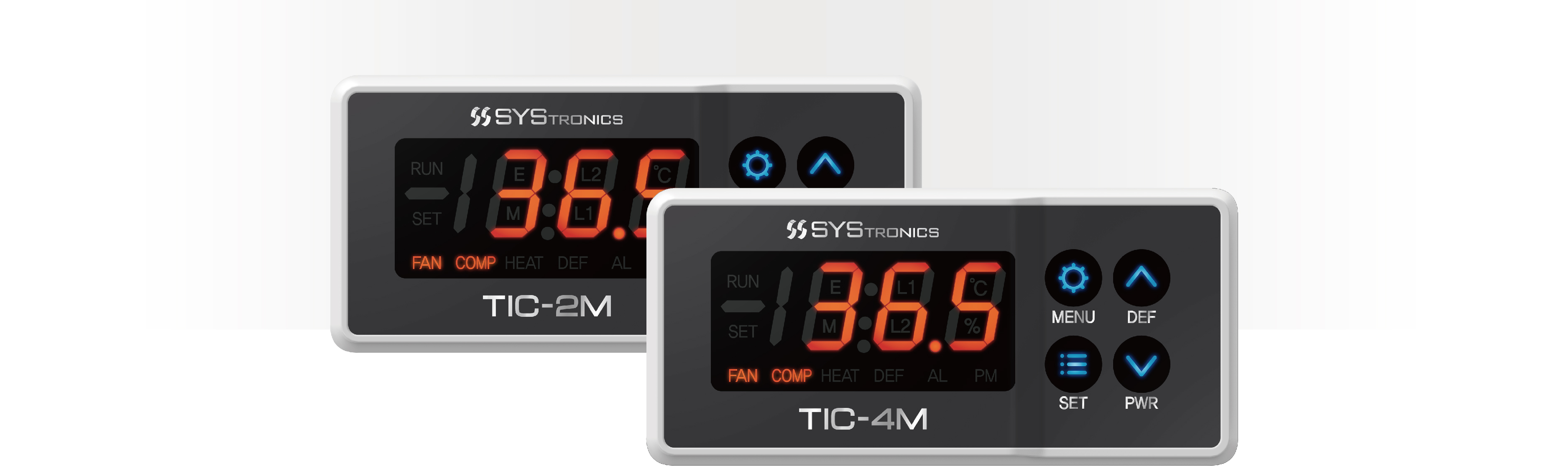

Button-key TIC-4M All-in-one Controller
It is a dedicated controller for temperature control that enables defrosting, cooling and heating operation. It is a compact size temperature controller. but it is a product with various functions that users needs.The integrated design makes it easy to set up in various fields and at the same time can reduce unnecessary costs.
All In One Controller

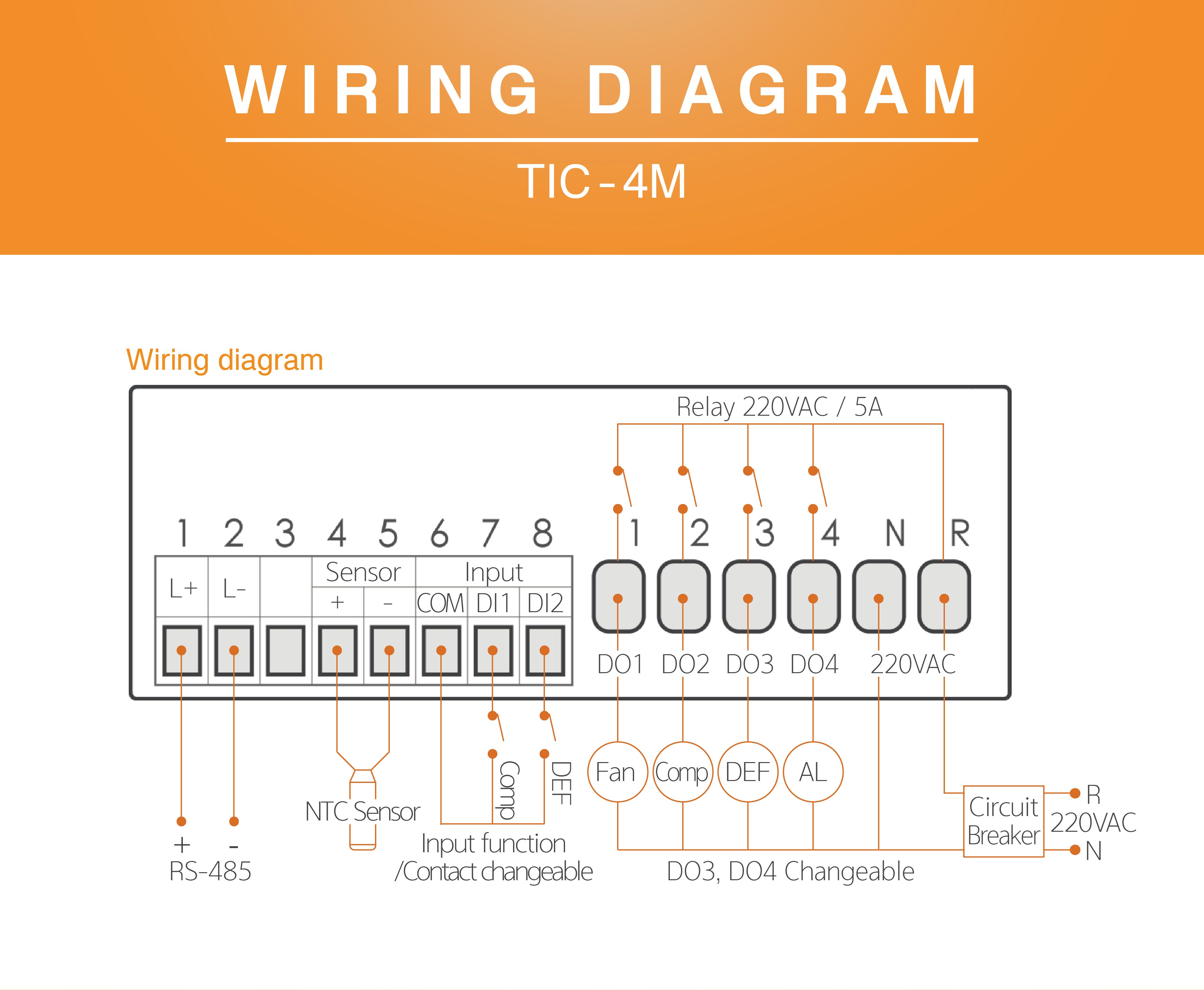

It is a compact-size controller with 4 output ports, 2 input port and 1 temperature mornitoring Port. Depending on the applicable conditions, the temperature input ports can be changed to input ports through configuration. The user can configure the setting according the conditions of the work site. As it is embedded with the 1 COM Port, emote monitoring and control are available.
| Feature • Showcase dedicated controller • Digital input 2 port • Digital output 4 port • RS-485 Communication 1 Port • Temperature monitoring 1 Port |
Specification
| Item | Contents | Remarks |
| Input power | 220VAC, 50/60Hz | · |
| Output voltage | 220VAC, 50/60Hz | · |
| Output capacity | 250VAC / 5A | Relay output |
Input port | 2 Port | Non powered contact / Changeable to temperature sensor input |
| Output port | 4 Port | Input power output |
| Sensor port | 1 Port | NTC:10K at 25℃ ± 1℃ |
| Comms. port | 1 Port | RS-485 / Modbus RTU |
Operating temp. | -10 ~ 60℃ | Non condensing |
Operating humi. | 5 ~ 90% | Non condensing |
Storage temp. | -20 ~ 60℃ | Non condensing |
Body weight | 282g | · |

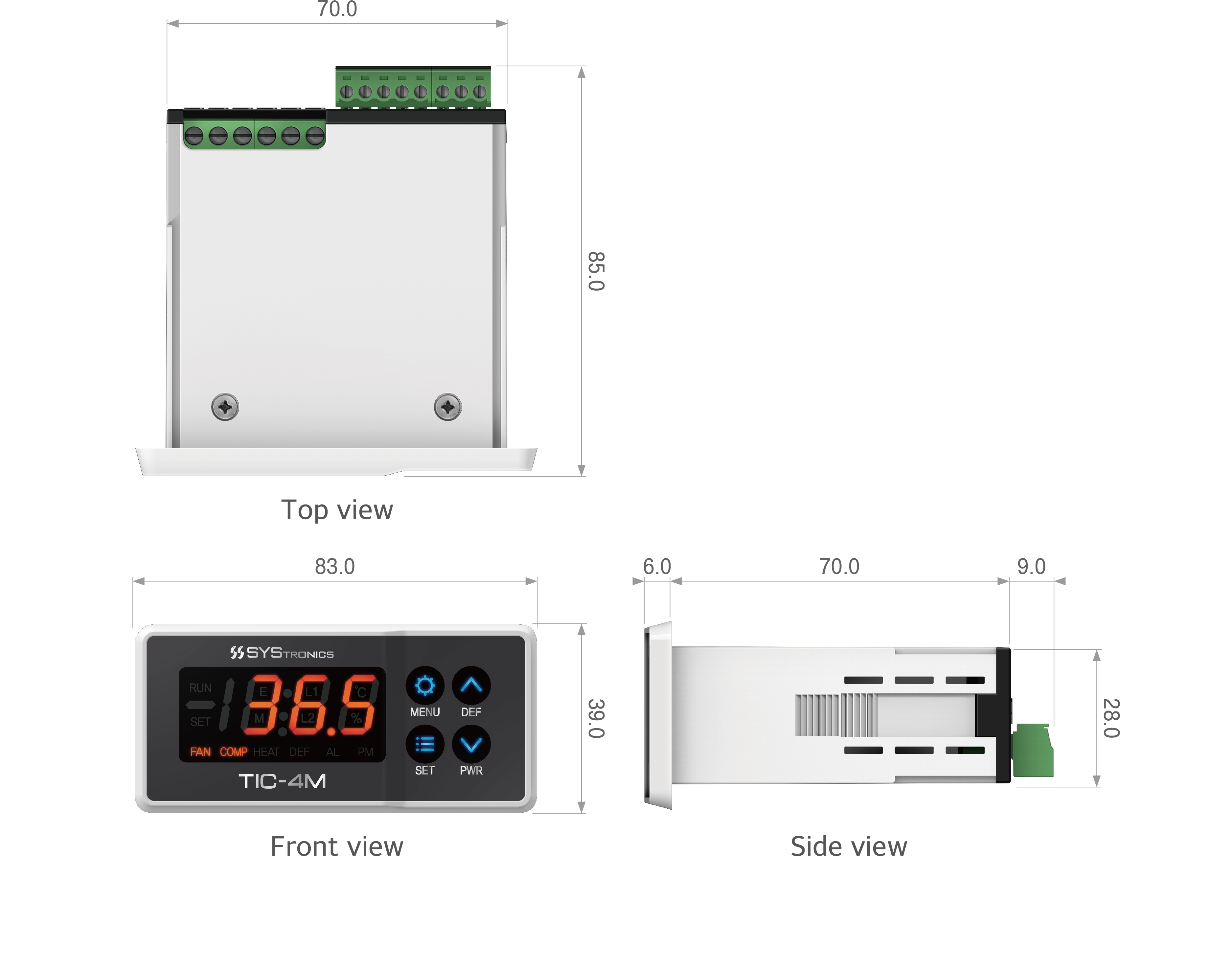

Size (Unit:mm)

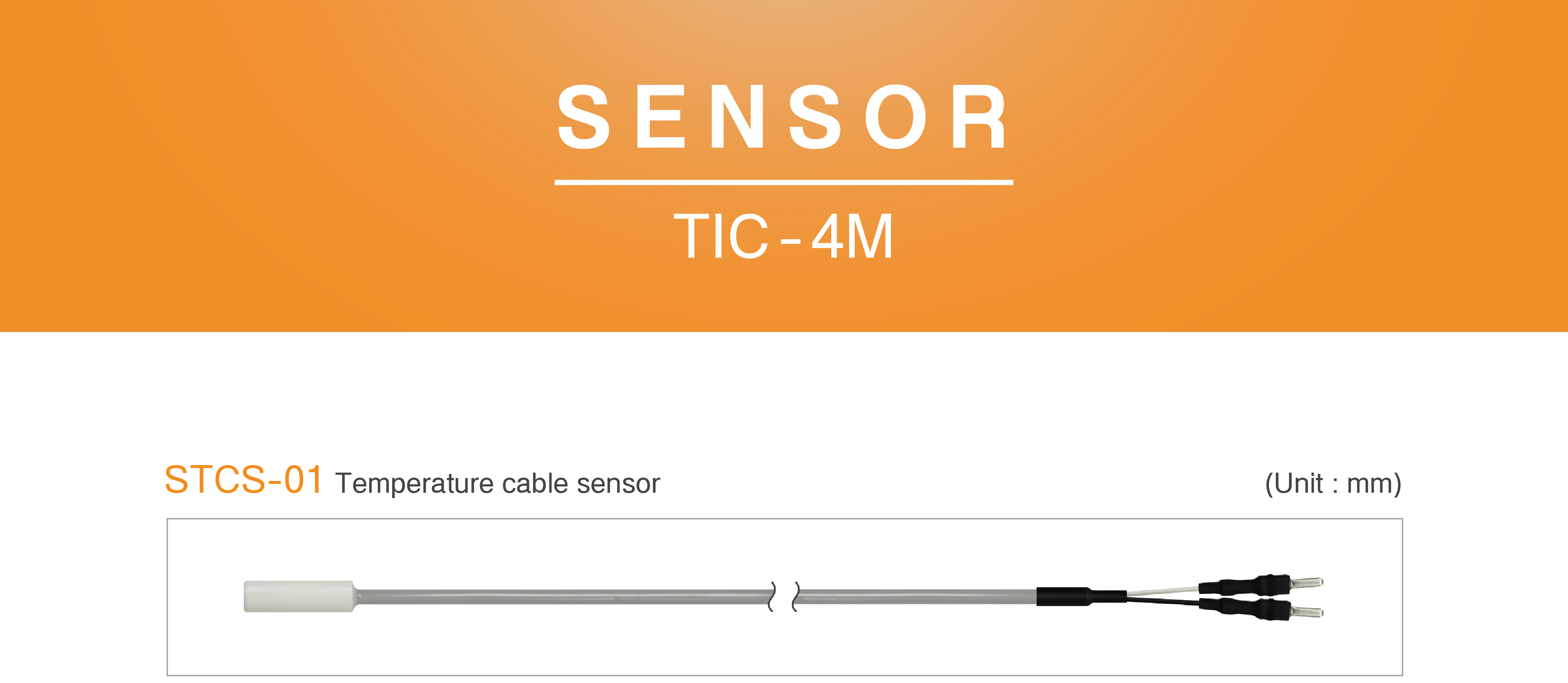

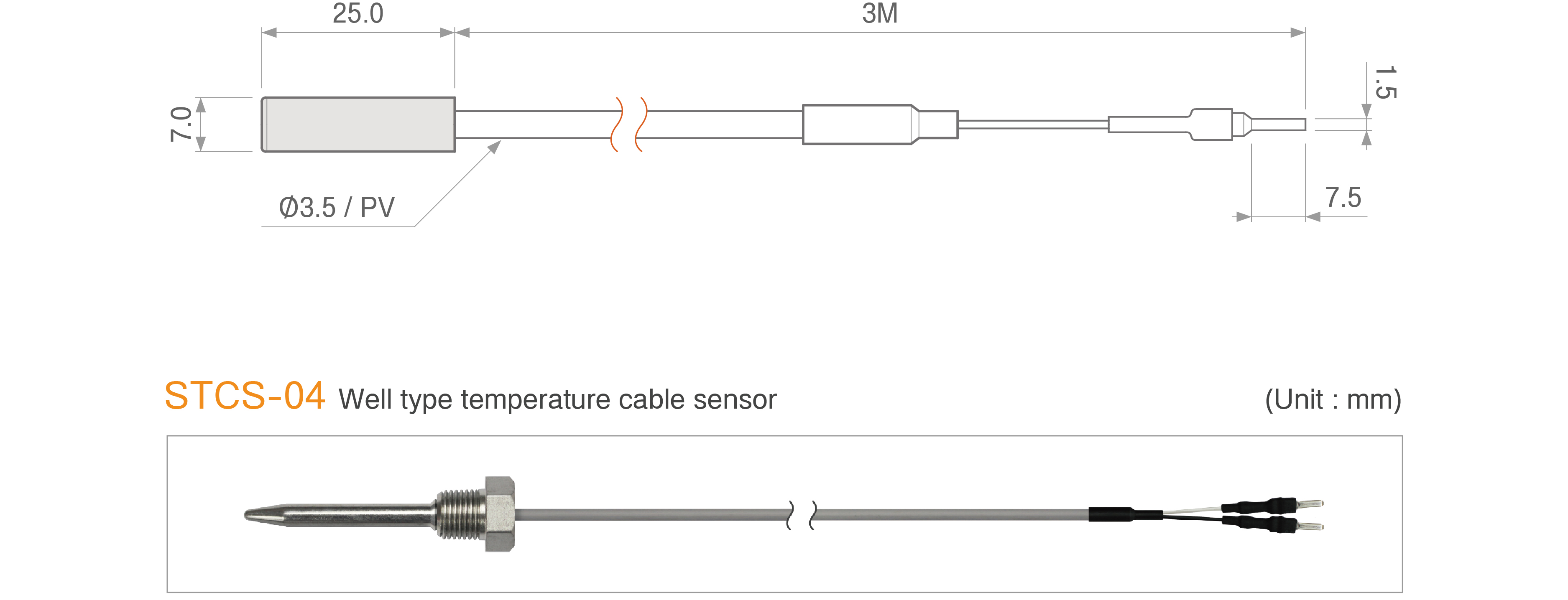

| Item | Contents |
| Temp. range | -45 ~ 80℃ |
| Sensor elemen | NTC : 10K at 25℃ ±1% |
| Body weigh | 58g (Basic 3M) |
| Apply | Low temperature, Frozen warehouse |

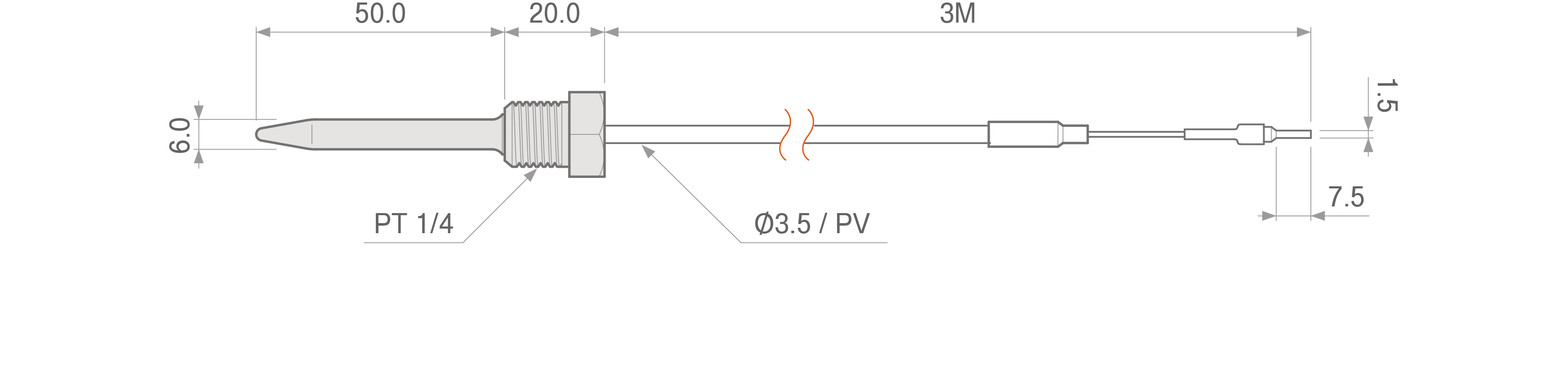

| Item | Contents |
| Temp. range | -45 ~ 80℃ |
| Sensor element | NTC : 10K at 25℃ ±1% |
| Body weight | 84g (Basic 3M) |
| Apply | Chiller, Heatpump |
It is a temperature controller dedicated to defrosting, cooling and heating operation. It is a compact-size controller with 4 output ports and 1 temperature input port (up to 4 ports when the option board is specified). Depending on the applicable conditions, the 2 temperature input ports can be changed to 2 input ports through configuration. The user can configure the setting according o the conditions of the worksite. As it is embedded with the 1 COM Port (up to 2 ports when the option board is specified), emote monitoring and control are available.
